Product series: |
Brushless DC Motor |
Product name: |
130ZW3S Series Brushless DC Motor |
Product intro: |
130ZW3S Series Brushless DC Motor |
|

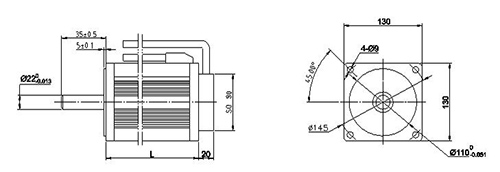

| ==For more information£º==
| General Specification: |
| Item |
Specifications |
| Winding type |
YWE |
| Hall effect angle |
120 degree electrical angle |
| Radial play |
0.02mm@460g |
| End play |
0.08mm@450g |
| Max. radial force |
220N @ 20mm from the flange |
| Max. axial force |
60N |
| Insulation class |
Class B |
| Dielectric strength |
500VDC for one minute |
| Insulation resistance |
100M¦¸Min., 500VDC |
| Model |
|
130ZW3S120C50 |
130ZW3S155E 30 |
| Number of poles |
4 |
| Number of phase |
3 |
| Rated voltage |
VDC |
48 |
310 |
| Rated speed |
RPM |
5000 |
3000 |
| Continuous stall torque |
N.m |
2.8 |
5.5 |
| Rated torque |
N.m |
2.5 |
5 |
| Rotor power |
W |
1308 |
1570 |
| Peak torque |
N.m |
7.5 |
15 |
| Peak current |
A |
109 |
20 |
| Torque constant |
Nm/A |
0.07 |
0.74 |
| Back E.M.F |
V/KRPM |
6.2 |
64.5 |
| Rotor inertia |
Kg.c©O |
2.4 |
4.8 |
| Body length |
mm |
120 |
155 |
| Voltage range |
VDC |
36-310 |
| Speed Range |
rpm |
1000-5000 |
| Weight |
Kg |
5 |
5.5 |
|
|
|
