Product series: |
Brushless DC Motor |
Product name: |

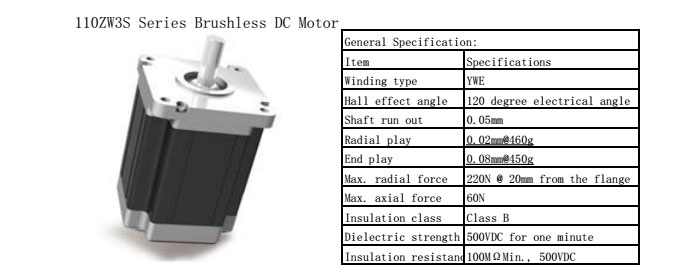

110ZW3S Series |
Product intro: |
110ZW3S Series |
|
| ==For more information£º==
| Model |
Units |
110ZW3S125E30 |
110ZW3S125D30 |
110ZW3S155E30 |
110ZW3S185D20 |
110ZW3S185D24 |
110ZW3S210D20 |
110ZW3S210D24 |
| Number of poles |
|
8 |
| Number of phase |
|
3 |
| Rated voltage |
VDC |
310 |
170 |
310 |
170 |
170 |
170 |
170 |
| Rated speed |
RPM |
3000 |
3000 |
3000 |
2000 |
2400 |
2000 |
2400 |
| Continuous stall torque |
N.m |
2.2 |
2,2 |
4.8 |
7.164 |
7.16 |
8.592 |
8.592 |
| Rated torque |
N.m |
2 |
2 |
4 |
6 |
6 |
7.16 |
7.16 |
| Rated power |
W |
625 |
625 |
1250 |
1250 |
1500 |
1500 |
1800 |
| Peak torque |
N.m |
6 |
6 |
12 |
17.91 |
17.91 |
21.48 |
21.48 |
| Peak current |
A |
8 |
14.5 |
14.7 |
31.5 |
37.5 |
37.5 |
45 |
| Torque constant |
Nm/A |
0.77 |
0.77 |
0.77 |
0.595 |
0.5 |
0.595 |
0.5 |
| Back E.M.F |
V/KRPM |
80.5 |
44.2 |
81.58 |
62.96 |
53.1 |
53.1 |
62.96 |
| Rotor inertia |
g.c©O |
1.9 |
1.9 |
3.3 |
5 |
5 |
5.9 |
5.9 |

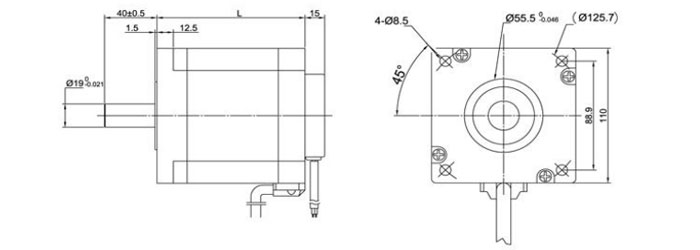

| Body length |
mm |
125 |
125 |
155 |
185 |
185 |
210 |
210 |
| Voltage range |
VDC |
48¡«310 |
| Speed Range |
RPM |
1000¡«3000 |
| Weight |
Kg |
4.8 |
4.8 |
5.2 |
5.5 |
5.5 |
6 |
6 | |
|
|
