Product series: |
Brushless DC Motor |
Product name: |
86ZW3SA Series |
Product intro: |

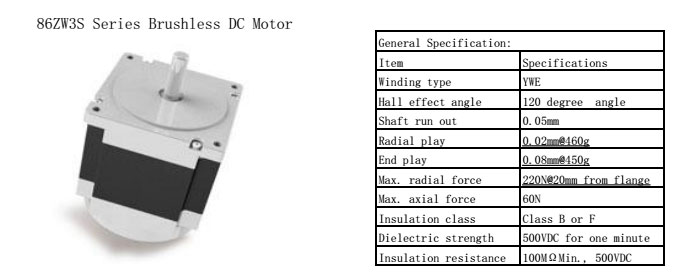

86ZW3SA Series |
|
| ==For more information£º==
| Model |
Units |
86ZW3S71A20 |
86ZW3S71C40 |
86ZW3S98C20 |
86ZW3S98E60 |
86ZW3S125C20 |
86ZW3S125E60 |
| Number of poles |
|
4 |
| Number of phase |
|
3 |
| Rated voltage |
VDC |
24 |
48 |
48 |
310 |
48 |
310 |
| Rated speed |
RPM |
2000 |
4000 |
2000 |
6000 |
2000 |
6000 |
| Continuous stall torque |
N.m |
0.84 |
0.84 |
1.68 |
1.68 |
2.52 |
2.2 |
| Rated torque |
N.m |
0.7 |
0.7 |
1.4 |
1.4 |
2.1 |
2 |
| Rated power |
W |
147 |
293 |
293 |
879 |
440 |
1256 |
| Peak torque |
N.m |
2.1 |
2.1 |
4.2 |
4.2 |
6.3 |
6 |
| Peak current |
A |
25 |
24 |
24.7 |
10.8 |
36 |
15.4 |
| Torque constant |
Nm/A |
0.084 |
0.087 |
0.17 |
0.39 |
0.175 |
0.39 |
| Back E.M.F |
V/KRPM |
8.9 |
9.25 |
18 |
41.3 |
18.5 |
41.3 |
| Rotor inertia |
Kg.c©O |
0.7 |
0.7 |
1.4 |
1.4 |
2.1 |
2.1 |
| Body length |
mm |
71 |
71 |
98 |
98 |
125 |
125 |
| Voltage range |
VDC |
12¡«310 |
| Speed Range |
RPM |
2000¡«6000 |
| Weight |
Kg |
1.9 |
1.9 |
2.6 |
2.6 |
4 |
4 | |
|
|
