Product series: |
Brushless DC Motor |
Product name: |

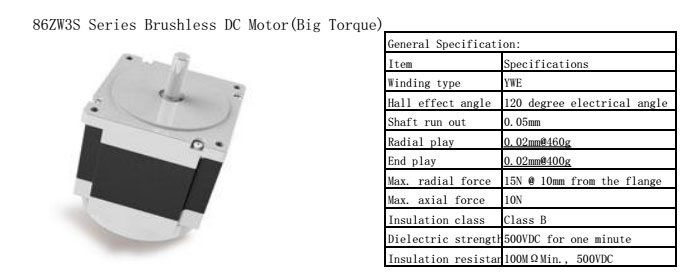

86ZW3S Series |
Product intro: |
86ZW3S Series |
|
| ==For more information£º==
| Model |
Units |
86ZW3S58C10 |
86ZW3S58C30 |
86ZW3S71C10 |
86ZW3S71C30 |
86ZW3S98C10 |
86ZW3S98C30 |
86ZW3S125C10 |
86ZW3S125C30 |
| Number of poles |
|
8 |
| Number of phase |
|
3 |
| Rated voltage |
VDC |
48 |
| Rated speed |
RPM |
1000 |
3000 |
1000 |
3000 |
1000 |
3000 |
1000 |
3000 |
| Continuous stall torque |
N.m |
0.42 |
0.42 |
0.84 |
0.84 |
1.68 |
1.68 |
2.52 |
2.2 |
| Rated torque |
N.m |
0.35 |
0.35 |
0.7 |
0.7 |
1.4 |
1.4 |
2.1 |
2.1 |
| Rated power |
W |
24.3 |
110 |
73 |
220 |
147 |
440 |
220 |
660 |
| Peak torque |
N.m |
1.05 |
1.05 |
2.1 |
2.1 |
4.2 |
4.2 |
6.3 |
6.3 |
| Peak current |
A |
2.86 |
8.6 |
5.7 |
17.1 |
11.4 |
34.3 |
17.2 |
51.5 |
| Torque constant |
Nm/A |
0.324 |
0.12 |
0.324 |
0.12 |
0.324 |
0.12 |
0.324 |
0.12 |
| Back E.M.F |
V/KRPM |
34.28 |
12.63 |
34.28 |
12.63 |
34.28 |
12.63 |
34.28 |
12.63 |
| Rotor inertia |
g.c©O |
0.4 |
0.4 |
0.8 |
0.8 |
1.6 |
1.6 |
2.4 |
2.4 |
| Body length |
mm |
58 |
58 |
71 |
71 |
98 |
98 |
125 |
125 |
| Voltage range |
VDC |
12~310 |
12~310 |
12~310 |
12~310 |
12~310 |
12~310 |
24~310 |
24~310 |
| Speed Range |
RPM |
1000~3000 |
| Weight |
Kg |
1.5 |
1.5 |
1.9 |
1.9 |
2.6 |
2.6 |
4 |
4 | |
|
|
