High Frequency Spindles


Product series:
 High Frequency Spindles
Product name:

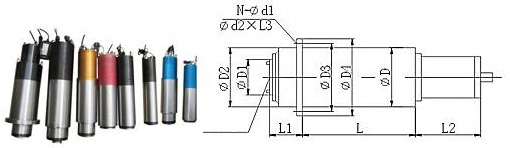

 The High Frequency Spindles For Machining Centre And Parallel Lathe
Product intro:
 High Frequency Woodworking Spindles
==For more information：==




spindletype
Speed (r/min)
motor
Lub
cool
Joint of nose
Bearings type
Character
Rated power
Voltage
Current
Frequency
SDS80-20-24Z/1.5
24000
1.5
220
5.4
400
Lub
water
ISO20hole
2×7006C P4
With sensor and cut-mechanism
SDS85-20-24Z/1.5
1×7004C P4
SDS80-20-30Z/1.8
30000
1.8
220
6.4
500
Lub
water
ISO20hole
2×30BNR P4
With sensor and cut-mechanism
SDS85-20-30Z/1.8
1×7004C P4
SDS100-25-24Z/2.5
24000
2.5
220
8.8
400
Lub
water
ISO25hole
2×35BNR P4
With sensor and cut-mechanism
SDS105-25-24Z/2.5
380
5.1
1×7005C P4
SDS100-25-30Z/3.2
30000
3.2
380
6.4
500
Lub
water
ISO25hole
2×35BNR P4
With sensor and cut-mechanism
SDS105-25-30Z/3.2
1×7005C P4
SDS110-30-18Z/3.2
18000
3.2
380
6.9
600
Lub
water
BT30hole
2×7007C P4
With sensor and cut-mechanism
1×7005C P4
SDS110-30-24Z/4.5
24000
4.5
380
9.2
800
Lub
water
BT30hole
2×35BNR P4
With sensor and cut-mechanism
1×25 BNR P4
SDS110-30-30Z/5.5
30000
5.5
380
11.5
1000
Lub
water
BT30hole
2×35BNR P4
With sensor and cut-mechanism
1×25BNR P4
SDS120-30-18Z/5
18000
5
380
10
600
Lub
water
BT30hole
2×40BNR P4
With sensor and cut-mechanism
SDS125-30-18Z/5
2×7006C P4
SDS120-30-24Z/6.5
24000
6.5
380
13.5
800
Lub
water
BT30hole
2×40BNR P4
With sensor and cut-mechanism
SDS125-30-24Z/6.5
2×7006C P4
SDS140-30-9-15Z/5
9000
5
294
13
300
Lub
water
BT30hole
2×55BNR P4
With sensor and cut-mechanism
15000
380
500
2×35BNR P4
SDS150-30-9-15Z/4
9000
4
294
10
300
Lub
water
BT30hole
2×55BNR P4
With encoder,sensor and cut-mechanism
15000
380
500
2×35BNR P4
SDS150-30-18Z/7.5
18000
7.5
380
14.9
600
Lub
water
BT30hole
2×40BNR P4
With sensor and cut-mechanism
2×7006C P4
SDS150-30-18Z/7.5B
18000
7.5
380
14.9
600
Lub
water
BT30hole
2×40BNR P4
With encoder,sensor and cut-mechanism
2×7006C P4
SDS170-40-3-9Z/3.7
3000
3.7
220
12.5
100
Lub
water
BT40hole
2×7013C P4
With encoder,sensor and cut-mechanism
9000
