Product series: |
High Frequency Spindles |
Product name: |
The Permanent torque Electric Spindles For Numerical Engraving |
Product intro: |
High Frequency Spindle |
|
| ==For more information：==
|
spindletype |
Speed (r/min) |
motor |

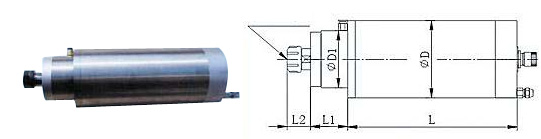

Demensions(mm) |
Bearings type(NSK) |
Kg |
|
KW |
V |
A |
HZ |
D |
D1 |
Joint of nose |
L |
L1 |
L2 |
|
GDZ95 |
20000-60000 |
0.095 |
36 |
1.4 |
333-1000 |
48 |
40 |
3.175 |
115 |
6 |
23 |
1×C36018/1×C36100 |
2.5 |
|
GDS300 |
20000-60000 |
0.3 |
75 |
2.8 |
333-1000 |
48 |
42 |
3.175 |
124 |
6 |
23 |
NSK:1×7001CP5/C36018 |
2.5 |
|
GDZ400 |
10000-40000 |
0.4 |
110 |
1.2 |
167-667 |
58 |
49 |
3.175~6 |
172 |
6 |
18 |
NSK:1×7002CP5/1×7001CP5 |
3 |
|
GDS800 |
8000-40000 |
0.8 |
220 |
2.5 |
133-667 |
62 |
48 |
3.175~7 |
172 |
6 |
18 |
NSK:1×7002CP5/1×7001CP5 |
3.5 |
|
GDS800 |
8000-40000 |
0.8 |
220 |
2.5 |
133-667 |
62 |
58 |
3.175~7 |
197 |
12 |
17 |
NSK:1×7002CP5/1×7000CP5 |
3.5 |
|
GDS800 |
8000-40000 |
0.8 |
220 |
2.5 |
133-667 |
58 |
58 |
3.175~7 |
189 |
6 |
19 |
NSK:2×7002CP5/1×7000CP5 |
4 |
|
GDS800 |
8000-40000 |
0.8 |
220 |
2.5 |
133-667 |
58 |
58 |
3.175~8 |
209 |
12 |
15 |
NSK:2×7002CP5/1×7000CP5 |
4 |
|
GDZ1500 |
8000-24000 |
1.5 |
145 |
3.2 |
133-400 |
80 |
60 |
3.175~8 |
209 |
12 |
15 |
NSK:2×7004CP5/2×7001CP5 |
7.5 |
|
GDZ1500 |
6000-24000 |
1.5 |
220 |
4.7 |
100-400 |
80 |
60 |
3.175~10 |
212 |
13 |
31 |
NSK:2×7004CP5/2×7001CP5 |
7.5 |
|
GDZ1500 |
6000-24000 |
1.5 |
220 |
4.7 |
100-400 |
85 |
65 |
3.175~10 |
212 |
13 |
31 |
NSK:2×7004CP5/2×7001CP5 |
7.5 |
|
GDZ1500 |
6000-24000 |
1.5 |
220 |
4.7 |
100-400 |
85 |
79 |
3.175~13 |
216 |
15 |
31 |
NSK:2×7005CP5/2×7001CP5 |
7.5 |
|
GDS2200 |
5000-24000 |
2.2 |
220 380 |
5.54 |
83-400 |
105 |
84 |
3.175~13 |
260 |
13 |
22 |
NSK:2×7005CP5/2×7004CP5 |
10 |
|
GDS2200 |
5000-24000 |
2.2 |
220 380 |
5.54 |
83-400 |
100 |
79 |
3.175~13 |
260 |
13 |
22 |
NSK:2×7005CP5/2×7004CP5 |
9 |
|
GDS3000 |
5000-24000 |
3.0 |
380 |
5.5 |
83-400 |
105 |
84 |
3.175~13 |
243 |
13 |
25 |
NSK:2×7005CP5/2×7004CP5 |
12 |
|
GDS3000 |
5000-24000 |
3.0 |
380 |
| |
|
|
