Product series: |
High Frequency Spindles |
Product name: |
The Permanent torque Electric Spindles For Numerical Engraving |
Product intro: |
High Frequency Spindles |
|
| ==For more information：==
|
Spindle type |
speed(r/min) |
MOTOR |

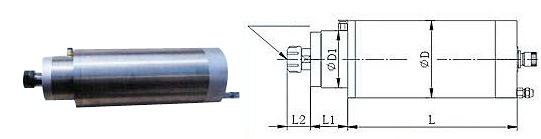

Demensions(mm) |
Bearings type |
kg |
|
KW |
V |
A |
HZ |
D |
D1 |
Joint of nose |
L |
L1 |
L2 |
|
SDK100-24Z/2.2G |
24000 |
2.2 |
220 |
7.6 |
400 |
100 |
79 |
ER20-Φ3.175-Φ13 |
245 |
17 |
35 |
NSK:2×7005CP5/2×704CP5 |
10 |
|
380 |
4.4 |
|
SDK100-24Z/2.2G |
24000 |
2.2 |
220 |
7.6 |
400 |
100 |
68 |
ER20-Φ3.175-Φ13 |
220 |
7.5 |
38 |
NSK:2×7005CP5/1×7003CP5 |
9.5 |
|
380 |
4.4 |
9.5 |
|
SDK100-24Z/3.2 |
24000 |
3.2 |
380 |
6.3 |
400 |
100 |
79 |
ER20-Φ3.175-Φ13 |
269 |
17 |
35 |
NSK:2×7005CP5/2×7004CP5 |
10 |
|
SDK105-24Z/2.2 |
24000 |
2.2 |
220 |
7.6 |
400 |
105 |
79 |
ER20-Φ3.175-Φ13 |
245 |
17 |
35 |
NSK:2×7005CP5/2×7004CP5 |
13 |
|
380 |
4.4 |
|
SDK105-24Z/3.2 |
24000 |
3.2 |
380 |
6.3 |
400 |
105 |
79 |
ER20-Φ3.175-Φ13 |
269 |
17 |
35 |
NSK:2×7005CP5/2×7004CP5 |
13 |
|
SDK105-21Z/3.5 |
21000 |
3.5 |
380 |
6.8 |
350 |
105 |
81 |
ER20-Φ3.175-Φ13 |
238 |
54 |
36 |
NSK:2×7006CP5/2×7204CP5 |
13 |
|
SDK105-24Z/4.0 |
24000 |
4 |
380 |
7.8 |
400 |
105 |
79 |
ER20-Φ3.175-Φ13 |
246 |
17 |
36 |
NSK:2×7005CP5/2×7003CP5 |
13 |
|
SDK110-21Z/3.5G |
21000 |
3.5 |
380 |
6.8 |
350 |
110 |
81 |
ER20-Φ3.175-Φ13 |
238 |
54 |
36 |
NSK:2×7006CP5/2×7204CP5 |
16 |
|
SDK110-21Z/3.5G |
21000 |
3.5 |
380 |
7.7 |
700 |
110 |
81 |
ER20-Φ3.175-Φ13 |
238 |
54 |
36 |
NSK:2×7006CP5/2×7204CP5 |
16 |
|
SDK110-18Z/4.0 |
18000 |
4 |
380 |
8.5 |
600 |
110 |
82 |
ER25-Φ3.175-Φ16 |
263 |
60 |
40 |
NSK:2×7007CP5/2×7204CP5 |
17 |
|
SDK110-24Z/4.0 |
24000 |
4 |
380 |
7.8 |
400 |
110 |
79 |
ER20-Φ3.175-Φ13 |
246 |
17 |
36 |
NSK:2×7005CP5/2×7003CP5 |
16 |
|
SDK120-18Z/4.0 |
18000 |
4 |
380 |
7.9 |
300 |
120 |
92 |
ER25-Φ3.175-Φ16 |
274 |
60 |
38 |
NSK:2×7007CP5/2×7205CP5 |
21 |
|
SDK120-18Z/5.5 |
18000 |
5.5 |
380 |
10.8 |
300 |
120 |
92 |
ER25-Φ3.175-Φ16 |
282 |
59 |
40.5 |
NSK:2×7007CP5/2×7205CP5 |
21.5 |
|
SDK120-18Z/7.5 |
18000 |
7.5 |
380 |
14.4 |
300 |
120 |
92 |
ER25-Φ3.175-Φ16 |
319 |
59 |
40.5 |
NSK:2×7007CP5/2×7205CP5 |
22 |
|
SDK125-18Z/4.0 |
18000 |
4 |
380 |
7.9 |
300 |
125 |
92 |
ER25-Φ3.175-Φ16 |
274 |
60 |
38 |
NSK:2×7007CP5/2×7205CP5 |
25 |
|
SDK125-18Z/5.5 |
18000 |
5.5 |
380 |
10.8 |
300 |
125 |
92 |
ER25-Φ3.175-Φ16 |
282 |
59 |
40.5 |
NSK:2×7007CP5/2×7205CP5 |
25.5 |
|
SDK125-18Z/7.5 |
18000 |
7.5 |
380 |
14.4 |
300 |
125 |
92 |
ER25-Φ3.175-Φ16 |
319 |
59 |
40.5 |
NSK:2×7007CP5/2×7205CP5 |
26 |
|
SDK140-6-15Z/12 |
6000-15000 |
12 |
380 |
15.9 |
200-500 |
140 |
109 |
ER32-Φ3.175-Φ20 |
353 |
71 |
44 |
NSK:2×7009CP5/2×7007CP5 |
40 |
|
SDK150-9-18Z/15 |
9000-18000 |
15 |
380 |
21.4 |
300-600 | |
|
|
