Product series: |
High Frequency Spindles |
Product name: |
The Permanent Power Electric Spindles For Numerical Engraving |
Product intro: |
High Frequency Spindle |
|
| ==For more information：==
|
Spindle type |
speed(r/min) |
motor |

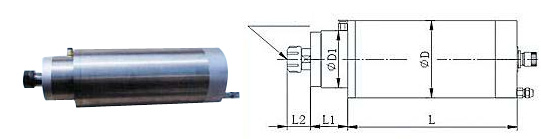

Demensions(mm) |
Berings type(NSK) |
kg |
|
kw |
kw |
v |
A |
HZ |
D |
D1 |
Joiont of nose |
L |
L1 |
L2 |
|
SDK80-12-24Z/1.2-2.4 |
12000-24000 |
1.2 |
2.4 |
156-220 |
4.6 |
400-800 |
80 |
68 |
ER20 |
279 |
21 |
35 |
2×7005C P5 2×7004C P5 |
7 |
|
SDK85-12-24Z/1.5-3.0 |
12000-24000 |
1.5 |
3 |
156-220 |
8 |
400-800 |
85 |
72 |
ER20 |
279 |
21 |
35 |
2×7005C P5 2×7004C P5 |
9 |
|
SDK100-12-24Z/2.2-4.4 |
12000-24000 |
2.2 |
4.4 |
269-380 |
6.8 |
400-800 |
100 |
79 |
ER20 |
269 |
17 |
35 |
2×7005C P5 2×7004C P5 |
13 |
|
SDK105-9-21Z/2.2-4.4 |
9000-21000 |
2.2 |
4.4 |
249-380 |
6.2 |
150-350 |
105 |
81 |
ER20 |
265 |
54 |
36 |
2×7006C P5 2×7204C P5 |
16 |
|
SDK110-9-21Z/2.2-4.4 |
9000-21000 |
2.2 |
4.4 |
249-380 |
6.2 |
150-350 |
110 |
81 |
ER20 |
265 |
54 |
36 |
2×7006C P5 2×7204C P5 |
17.5 |
|
SDK120-9-18Z/4.0-8.0 |
9000-18000 |
4 |
8 |
269-380 |
12.5 |
300-600 |
120 |
92 |
ER25 |
302 |
60 |
36 |
2×7007C P5 2×7205C P5 |
21.5 |
|
SDK120-9-18Z/5.0-10 |
9000-18000 |
5 |
10 |
269-380 |
15.5 |
300-600 |
120 |
92 |
ER25 |
332 |
60 |
36 |
2×7007C P5 2×7205C P5 |
24 |
|
SDK125-9-18Z/4.0-8.0 |
9000-18000 |
4 |
8 |
269-380 |
12.5 |
300-600 |
125 |
92 |
ER25 |
302 |
60 |
36 |
2×7007C P5 2×7205C P5 |
25.5 |
|
SDK125-9-18Z/5.0-10 |
9000-18000 |
5 |
10 |
269-380 |
15.5 |
300-600 |
125 |
92 |
ER25 |
332 |
60 |
36 |
2×7007C P5 2×7205C P5 |
29 |
|
SDK125-9-15Z/4.0-8.0 |
9000-15000 |
4 |
8 |
294-380 |
11.3 |
300-500 |
125 |
101 |
ER32 |
319 |
69 |
44 |
2×7009C P5 2×7007C P5 |
28.5 |
|
SDK125-9-15Z/5.0-10 |
9000-15000 |
5 |
10 |
294-380 |
14 |
300-500 |
125 |
101 |
ER32 |
349 |
69 |
44 |
2×7009C P5 2×7007C P5 |
32 |
|
SDK140-6-15Z/5.0-10 |
6000-15000 |
5 |
10 |
240-380 |
15.9 |
200-500 |
150 |
109 |
ER32 |
353 |
71 |
44 |
2×7009C P5 2×7007C P5 |
40 |
|
SDK150-6-12Z/5.0-10 |
6000-12000 |
5 |
10 |
269-380 |
14.1 |
200-400 |
150 |
109 |
ER32 |
353 |
71 |
44 |
2×7009C P5 2×7007C P5 |
47 |
|
SDK150-6-15Z/5.0-10 |
6000-15000 |
5 |
10 |
240-380 |
15.9 |
200-500 |
140 |
109 |
ER32 |
353 |
71 |
44 |
2×7009C P5 2×7007C P5 |
47 |
|
SDK150-9-18Z/7.5-15 |
9000-18000 |
7.5 |
15 |
269-380 |
21.4 |
300-600 |
150 |
92 |
Er25 |
345 |
63 |
43 |
2×7007C P5 2×7205C P5 |
48 | |
|
|
